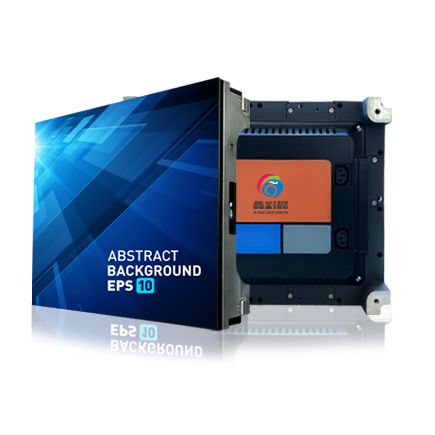

Starcolor Small Pitch LED Display- XTV Series
Small Pitch LED Display Features
- 16:9 Cabinet, More Visual Enjoyment.
- Deeper Black, Higher Contrast & Gray Scale.
- Much Closer View Distance with Better Clearer Display.
Our Advantage:
1. Highest cost-effective price.
2. With pure gold wire connection in LED.
3. All private information will be well protected.
4. Variety of customized products to satisfy different requests.
5. Goods be examined before delivery. Professional QC team.
6. Top Quality & Reasonable Price & Responsible After Service.
7. All inquiry will be answered within 24 hours by a well-trained and experienced staff.
8. The price depends on the quantity. We can provide you with the best competitive price in the market with the
same or even better quality.
Specification Details
| Technical specification | Product Model | |
| Pixel Pitch (mm) | XTV 1.25 Indoor | XTV 1.56 Indoor |
| Pixel Density (dots / m²) | 640000 | 409600 |
| Pixel Color | RGB Full Color | |
| LED Size / Color | SMD 1010 | |
| Module Size (mm) | 200 mm * 168.75 mm | |
| Module Resolution (dots) | 160 dots * 135 dots | 128 dots * 108 dotd |
| Refresh Rate (Hz) | 3840 Hz | |
| Scan Mode | 1/27 Scan | 1/30 Scan |
| Brightness (nits) | 900 ~1200 nits | |
| View Angle | 140° / 140° | |
| Best Viewing Distance | ≥ 1 m | ≥ 1.5 m |
| Frame Frequency (Hz) | 60 Hz | |
| Working Voltage (V) | 220 V / 110 V ~ 220 V | |
| Power Consumption Max/Avg (W/m²) | 480 W / 172 W | 338 W / 102 W |
| IP Grade | IP31 | |
| Life Span | 100000 Hours | |
Small Pitch LED Display - XTV Series
Multi-functional connector, fast and easy Smart connectors, set connections and slot trimming are all in one, all for the convenience of customers.
Energy-saving Higher heat dissipation panel processing technology, natural heat dissipation, no fan, zero noise at work, longer life
Original centralized power supply design, low loss, high conversion rate
Low light and high gray, the picture is more delicate High-quality black
LED light with black mask, contrast ratio up to 3000:1, making the picture clearer and brighter
Ultra-HD perfect picture quality, exclusive visual feast
Extremely high resolution brings a delicate display effect, and it is a beautiful embodiment of the new generation of ultra-high-definition LED display technology.
The display can be arbitrarily sized, spliced in any direction, multi-spec video source is optional, easy to achieve FHD, 4K large screen FULL HD 4K
Ingenious, design is unique in the industry, perfect Blending bionics, design aesthetics, ergonomics
Multi-functional connector, fast and easy Smart connectors, set connections and slot trimming are all in one, all for the convenience of customers.
Energy-saving Higher heat dissipation panel processing technology, natural heat dissipation, no fan, zero noise at work, longer life
Original centralized power supply design, low loss, high conversion rate
Low light and high gray, the picture is more delicate High-quality black
LED light with black mask, contrast ratio up to 3000:1, making the picture clearer and brighter
Ultra-HD perfect picture quality, exclusive visual feast
Extremely high resolution brings a delicate display effect, and it is a beautiful embodiment of the new generation of ultra-high-definition LED display technology.
The display can be arbitrarily sized, spliced in any direction, multi-spec video source is optional, easy to achieve FHD, 4K large screen FULL HD 4K
Ingenious, design is unique in the industry, perfect Blending bionics, design aesthetics, ergonomics
