XP Series Indoor LED Display

XP Series Indoor LED Display

view:1372

  • - Smart & Slim Flat Panel Design
  • - Perfect for Retail and Fixed Installations
BASIC INFO

Starcolor Indoor Full Color LED Display - XP Series

Screen Features
 - Smart & Slim Flat Panel Design
 - Perfect for Retail and Fixed Installations

Specification Details

Technical Specifications Product Model
Pixel Pitch (mm) XP 2.5 Indoor XP 3 Indoor XP 4 Indoor XP 5 Indoor
Pixel Density (dots / m²) 160000 111111 62500 40000
Pixel Color RGB Full Color
LED Size / Color SMD 2020 SMD 2020 SMD 2020 SMD 2020
Module Size (mm)            320mm * 160mm 192mm * 192mm 256mm * 128mm 320mm * 160mm
Module Resolution (dots) 128 dots * 64 dots 64 dots * 64 dots 64 dots * 32 dots 64 dots * 32 dots
Refresh Rate (Hz) 1920Hz~3840Hz
Scan Mode 1/32 Scan 1/32 Scan 1/16 Scan 1/16 Scan
Brightness (nits) 900 ~1200 nits 900 ~1200 nits 900 ~1200 nits 900 ~1200 nits
View Angle
160° / 140°
Best Viewing Distance 2.5 m 3 m 4 m 4 m
Frame Frequency (Hz) 60 Hz
Working Voltage (V) 220 V / 110 V ~ 220 V
Power Consumption  Max/Avg (W/m²) 585 W / 176 W 338 W / 102 W 382 W / 115 W 312 W / 94 W
IP Grade IP31
Life Span 100000 hours


Indoor Full Color LED Display - XP Series


Low heat, low noise, low radiation, can be embedded in the wall. Enjoy a flat view.
Wall mounting, streamlined space - installation thickness is only 8cm. Make your space wider.

Fourth generation, graphics correction technology optimized picture, easy to enjoy.


Multi-purpose for one screen, suitable for Exhibition Halls Restaurant Sales Department, Meeting Room, Mall, etc.

Our Advantages:

1. Highest cost-effective price.
2. With pure gold wire connection in LED.
3. All private information will be well protected.
4. Variety of customized products to satisfy different requests.
5. Goods be examined before delivery. Professional QC team.
6. Top Quality & Reasonable Price & Responsible After Service.
7. All inquiry will be answered within 24 hours by a well-trained and experienced staff.
8. The price depends on the quantity. We can provide you with the best competitive price in the market with the same or even better quality.

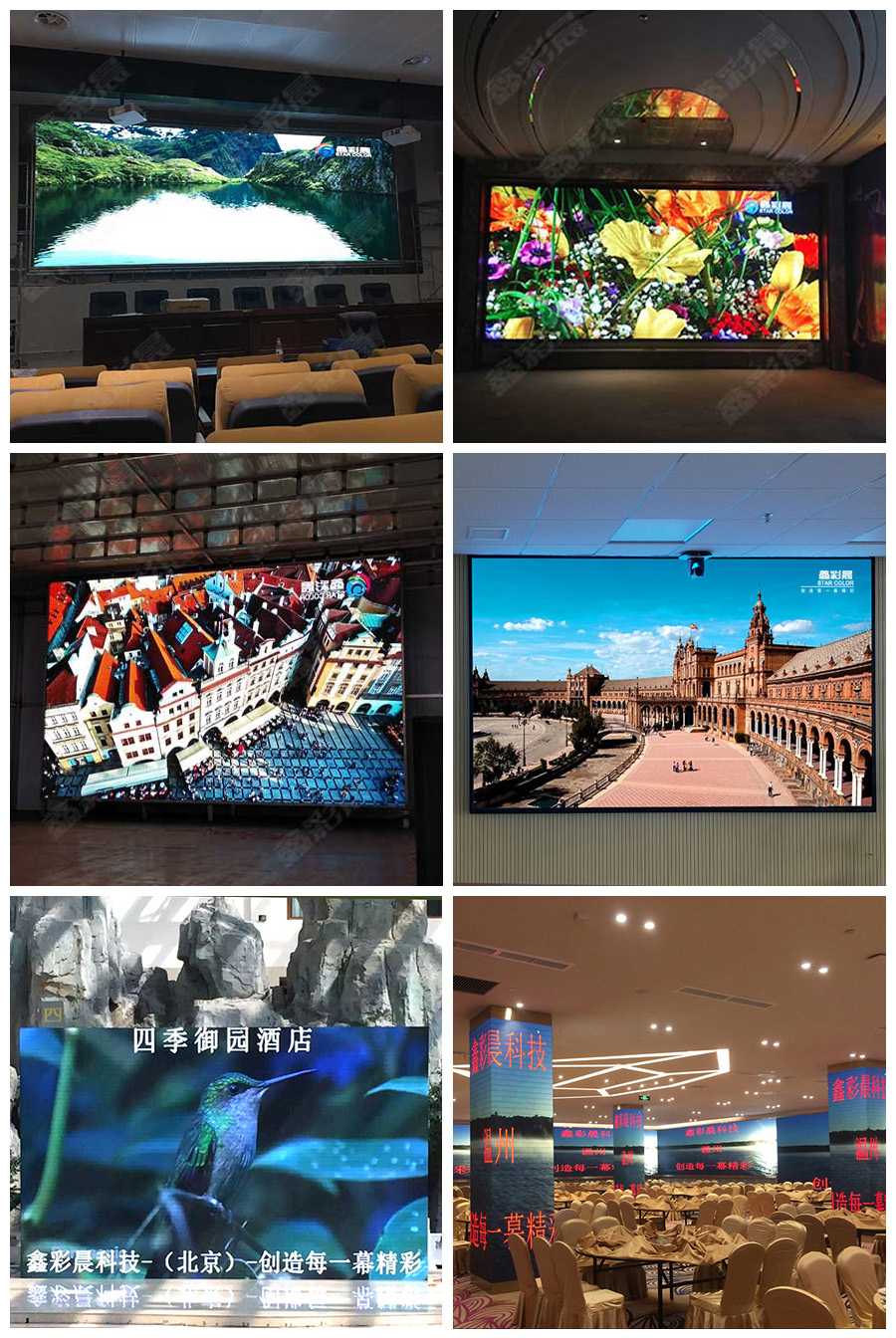

STARCOLOR Indoor Full Color LED Display Cases

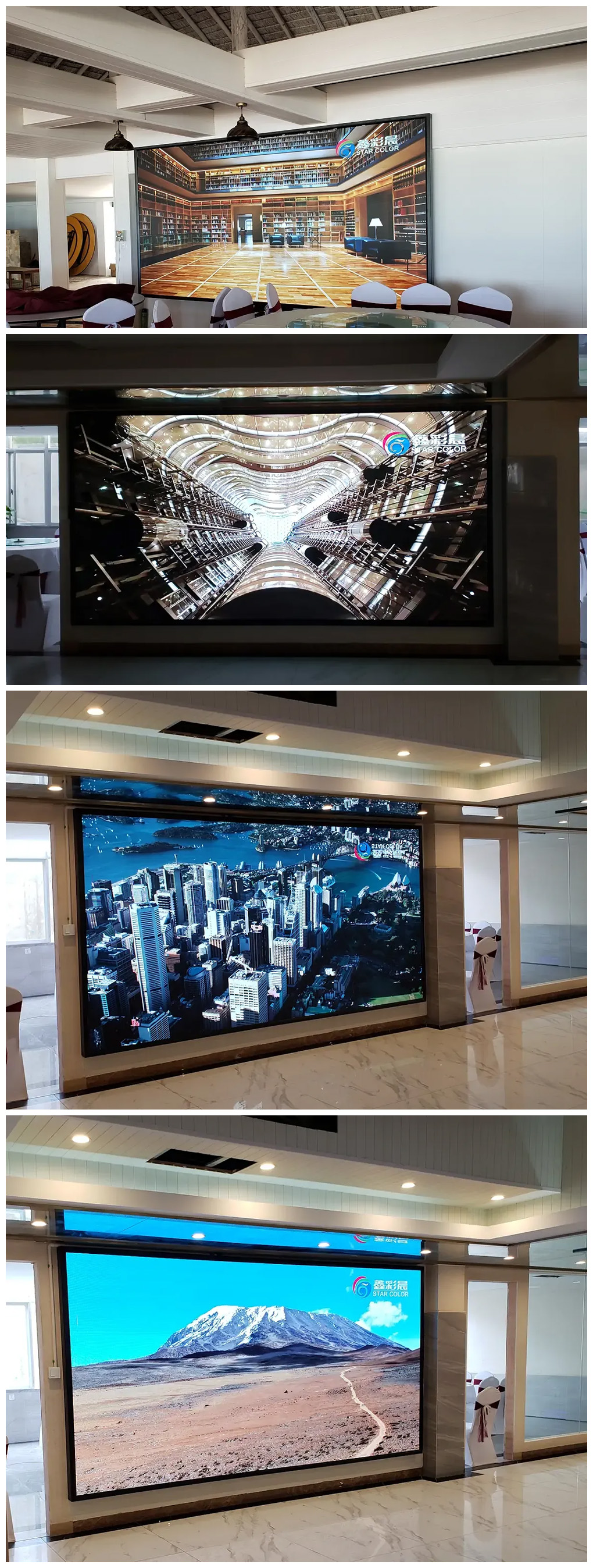

STARCOLOR Indoor LED Screen Case - Cambodia Royal Lihua Hotel P2.5 Indoor LED Display Screen

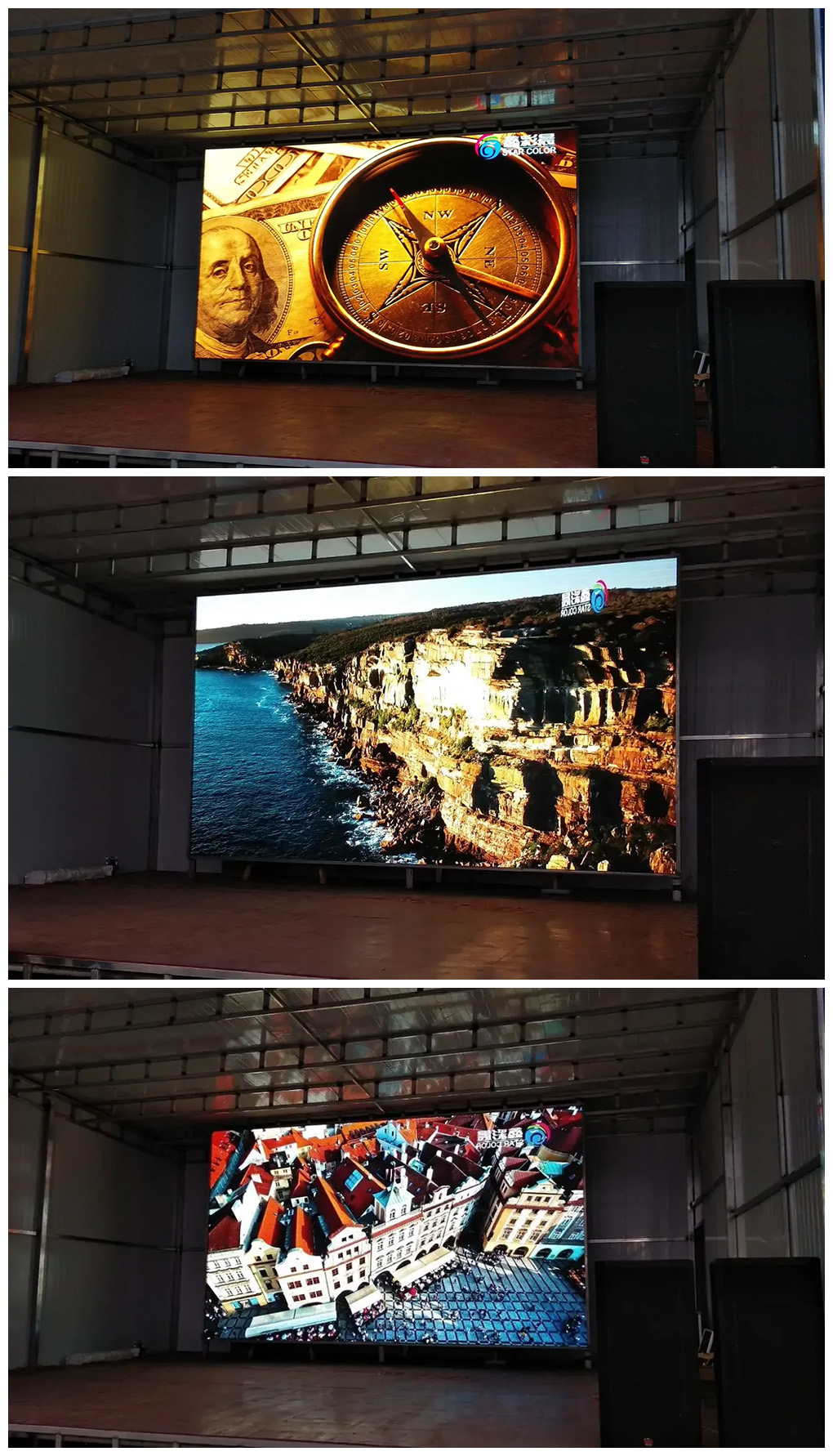

STARCOLOR Indoor LED Screen Case - Thailand P4 LED Display Screen

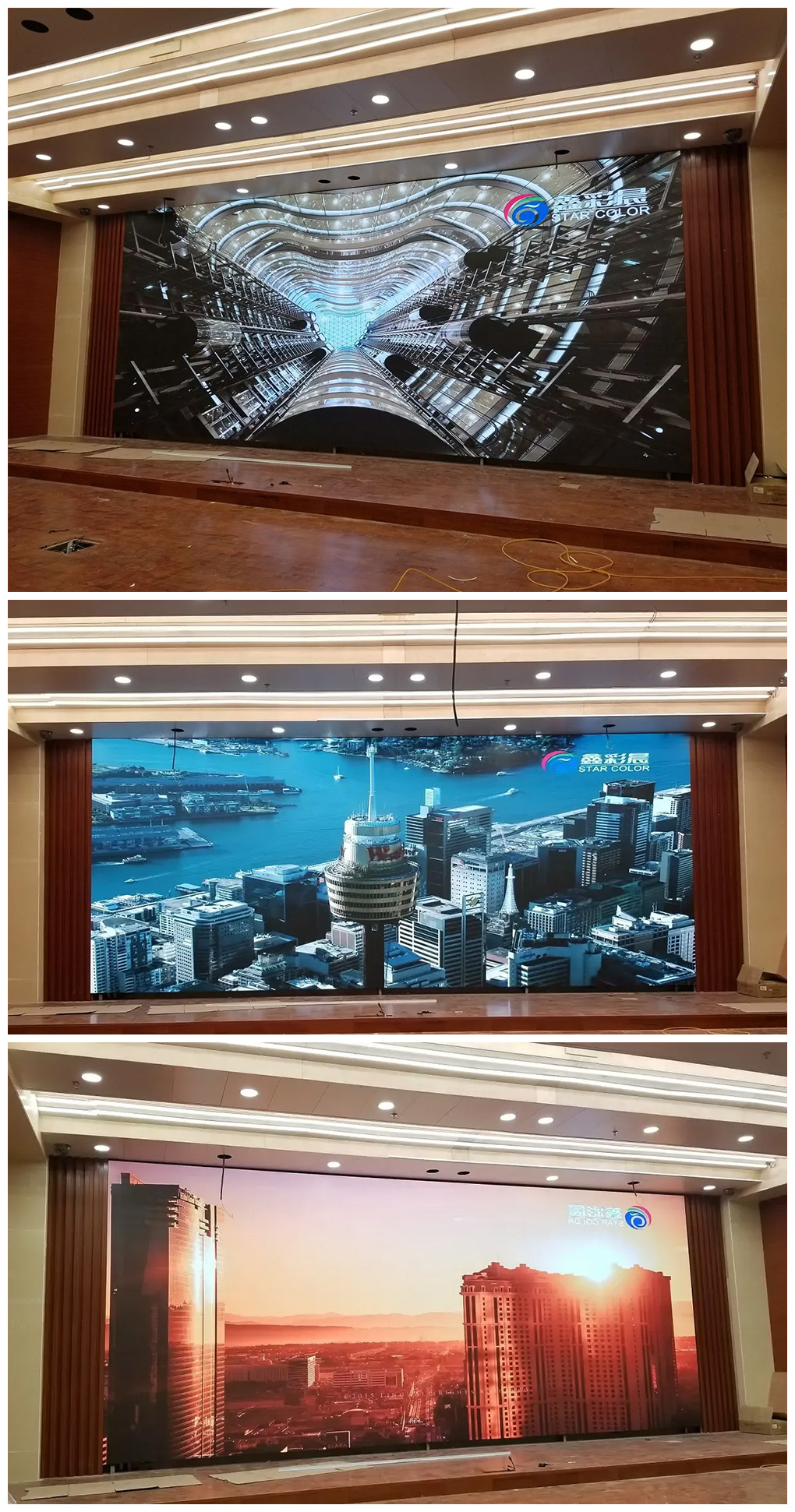

STARCOLOR Indoor LED Screen Case - Singapore Indoor P3 LED Display Screen
